Circulating pumps

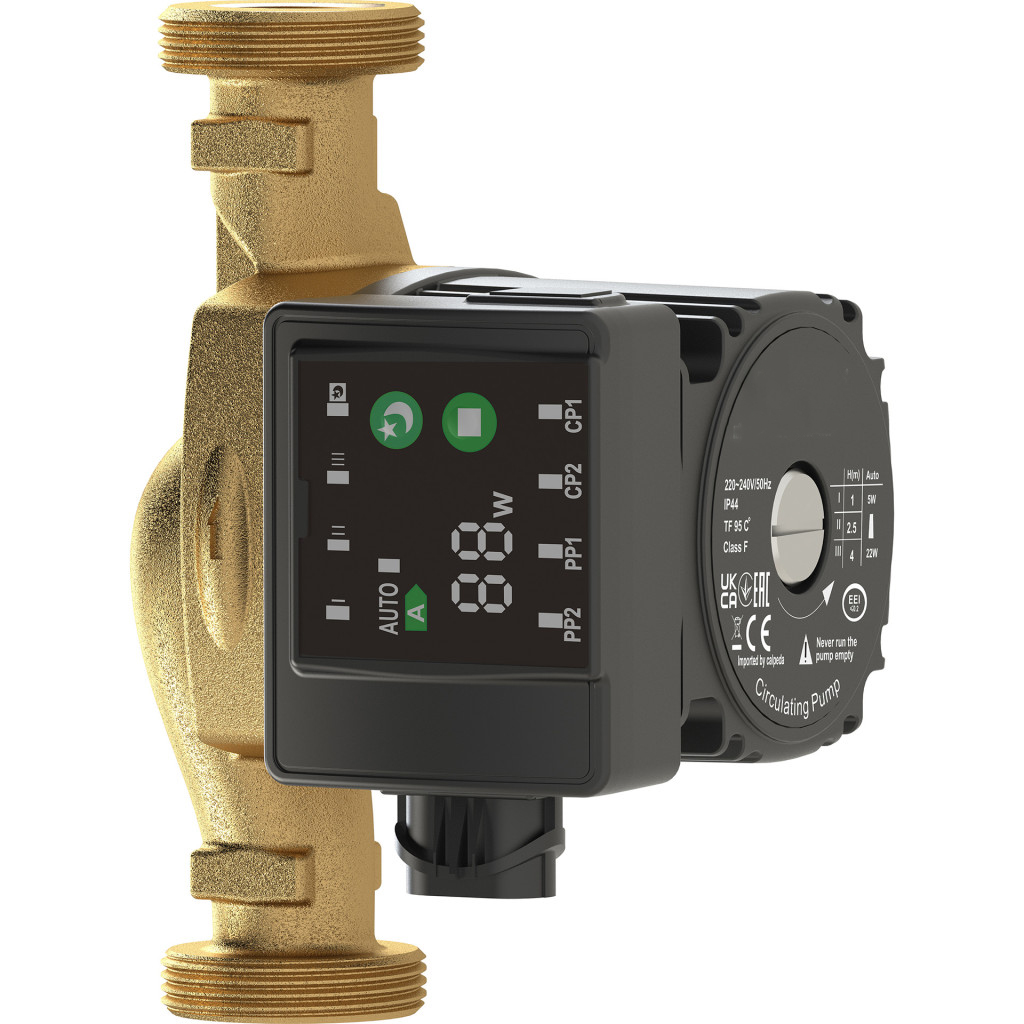

High-efficiency pumps for sanitary hot-water circulation
ExecutionEnergy-efficient, variable-speed circulating pump equipped with a permanent-magnet synchronous motor (PM) and an integrated inverter for control.Pump casing made of bronze. ApplicationsDesigned for use in domestic hot-wat...
- Italian precision engineering
- High energy efficiency
- Built for long-term durability
- Global service & support
ISO Certified
Quality assured
Energy Efficient
Up to 85% efficiency
Global Support
50+ countries
Built to Last
Durability first
Key Features
01
02
03
04
Specifications
Flow Head Power 0.2 / 2.6 0.4 / 6 0.01 / 0.045 mc / h m kW Operating Conditions
- Liquid temperature range: +5 °C to +65 °C
- Ambient temperature range: 0 °C to +40 °C
- Maximum allowable working pressure: 3 bar
- Storage conditions: –10 °C to +50 °C, up to 95% relative humidity at 40 °C
- Certifications: Compliant with CE requirements
- Sound pressure level: ≤ 45 dB(A)
- Minimum suction pressure: –0.05 bar at 75 °C and 0.28 bar at 90 °C
- EMC standards: EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3
- Connections: ISO 228 threaded ports, G 1
| Flow | 0.2 / 2.6 |
|---|---|
| Head | 0.4 / 6 |
| Power | 0.01 / 0.045 |
| Liquid temperature range | +5 °C to +65 °C |
| Ambient temperature range | 0 °C to +40 °C |
| Maximum allowable working pressure | 3 bar |
| Storage conditions | -10 °C to +50 °C, up to 95% relative humidity at 40 °C |
| Certifications | Compliant with CE requirements |
| Sound pressure level | ≤ 45 dB(A) |
| Minimum suction pressure | ?0.05 bar at 75 °C and 0.28 bar at 90 °C |
| EMC standards | EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3 |
| Connections | ISO 228 threaded ports, G 1 |
Why Solanzo
Engineered for Performance
Italian Engineering
Decades of manufacturing expertise distilled into pumping and solar systems renowned for precision and reliability.
High Efficiency
Advanced drives and MPPT technology deliver maximum output with minimum energy consumption and environmental impact.
Worldwide Support
A global service network ensures fast availability and premium technical support wherever you operate.
High-efficiency pumps for sanitary hot-water circulation
Our engineers will help you specify the ideal pump or solar solution for your application.
Request a Quote
